[Paper Review] Ferret-UI Lite: Lessons from Building Small On-Device GUI Agents

Metadata

Field	Value
Authors	Zhen Yang et al. (16 co-authors, Apple)
Venue	arXiv preprint · 2025
arXiv	2509.26539
Data	Public GUI grounding/navigation datasets (OS-Atlas, UGround, Aria-UI, Aguvis, Jedi, ShowUI, etc.) + mobile/desktop synthetic data
Review date	2026-05-29

TL;DR

Apple introduces Ferret-UI Lite, a 3B end-to-end on-device GUI agent that handles mobile, web, and desktop in a single model. On grounding it scores 91.6 on ScreenSpot-V2, 53.3 on ScreenSpot-Pro, and 55.3 on OSWorld-G — well ahead of comparable 3B models and closing in on the 7B tier. On navigation it reaches 28.0% on AndroidWorld and 19.8% on OSWorld: strong for its size, but still short of larger models.
The recipe has three threads: (1) curate real and synthetic data at scale under a unified action space, (2) use zoom-in visual tool-use at inference time to read high-resolution screens precisely, and (3) train in two stages, SFT → RLVR, with carefully designed verifiable rewards.
True to its title, this is a “lessons” report. Ablations show that small models are highly sensitive to RL reward design, that grounding and navigation data mutually reinforce each other, and that synthetic high-resolution data is especially effective for precise grounding. Code and weights are not released.

Introduction

A GUI (graphical user interface) agent takes over the screen manipulation a human would do with a mouse and keyboard: it looks at the screen and decides, on its own, “click this button, type into that field, move to the next screen,” then executes. Think of jotting a reminder hands-free while driving, or pulling up a recipe with wet hands. These assistive scenarios demand low latency, strong privacy guarantees, and robustness under limited connectivity — all three of which conflict with the “ship the screen to a big server model” approach. Hence the need for small, on-device GUI agents.

The catch is that the field’s center of gravity sits at the opposite end. Most methods lean on giant foundation models. Multi-agent systems that separate perception, planning, and action — built on top of large LLMs like GPT or Gemini — achieve impressive navigation, but at the cost of modeling complexity, compute budget, and inference time. End-to-end GUI agents that map raw screenshots directly to actions are an appealing alternative, yet here too larger models are preferred, because a single model has to absorb a heterogeneous mix of low-level grounding, screen understanding, multi-step planning, and self-reflection.

Ferret-UI Lite takes aim squarely at this imbalance. The real point of the paper is to ask, at the 3B scale, “can we build a strong GUI agent from a small model — and if so, which techniques work, and where does it break?” — then report the lessons honestly. It continues Apple’s Ferret-UI lineage (Ferret-UI, Ferret-UI 2), but this time the focus shifts from “understanding” toward “acting as an agent” and “on-device efficiency.”

Figure 1. Performance vs. model size. (a) On grounding, Ferret-UI Lite (red star, 3B) surpasses same-size models and even several larger ones. (b) On navigation it tops the 3B group but trails the 72B tier by a clear margin — a sign that multi-step reasoning is inherently hard for small models.

Key Contributions

A 3B on-device end-to-end GUI agent that handles mobile, web, and desktop in one model and learns grounding and navigation jointly. It sets a substantially higher grounding bar within the 3B tier.
Large-scale curation of real + synthetic data under a unified action space: public datasets are unified into point-based coordinates and a function-call action format, and gaps are filled with synthetic data. A multi-agent system that generates online rollouts is the centerpiece.
Inference-time zoom-in visual tool-use: a “thinking with images” mechanism that crops around the model’s initial prediction and re-predicts, letting a small model make a final decision over a narrow region of a large, cluttered screen.
Two-stage training with verifiable rewards (SFT → RLVR): a containment reward for grounding, and an action-type + parameter reward for navigation. Ablations show that, for small models, this reward design is decisive.
A consolidated set of scale-down lessons: rich ablations on data-mixture ratios, high-resolution data, CoT length, and RL reward composition map out what does and does not work for small models. This is the contribution that will outlast any single SOTA number.

Background

Grounding vs. navigation. GUI tasks split into two kinds. Grounding is a single-step problem: given an instruction like “click the Refresh button,” predict the screen coordinate to click. Navigation spans many steps — “send this poster to my mom by email” — changing the screen as it goes, planning over an accumulated history of screens and actions. Grounding lives or dies on precise location; navigation on long-horizon planning. They are usually handled separately; Ferret-UI Lite trains both in one model.

End-to-end vs. multi-agent. Multi-agent approaches separate a planner from a grounding module, using a large model (GPT, Gemini) as the planner and a specialized module to ground coordinates — powerful but heavy. End-to-end approaches, like OS-Atlas, UI-TARS, and ShowUI, predict action sequences directly from multimodal inputs with a single vision-language-action model; Ferret-UI Lite belongs here. Notably, it uses a multi-agent system to generate training data but deploys a single end-to-end model — distilling the richness of a multi-agent pipeline into a small unified model.

RLVR and GRPO. Reinforcement Learning with Verifiable Rewards (RLVR) replaces human labels with rule-based, automatically computable rewards. GUI grounding is a natural fit, since “did the predicted coordinate land inside the ground-truth box?” can be checked automatically. Optimization uses Group Relative Policy Optimization (GRPO), introduced in DeepSeekMath: sample multiple candidates per input and update the policy with an advantage normalized by the group’s reward mean and standard deviation — stable without a value network.

Thinking with images. A recent line of visual-reasoning work teaches models to actively crop and zoom into regions of interest rather than look once and commit. Ferret-UI Lite’s zoom-in applies this idea to grounding.

Method / Architecture

Backbone and I/O

Ferret-UI Lite starts from an internal 3B dense model pretrained on a mixture of text-only and vision-language understanding data. The image encoder uses the VitDet plain-ViT detection backbone with the AnyRes strategy, which dynamically partitions each input screenshot into a grid of cells — a choice that lets it process high-resolution UI screenshots without a token explosion. The resulting visual tokens feed a decoder-only LLM, and given a GUI screen plus a user instruction the model emits chain-of-thought traces (<think>...) and a low-level action policy (<function>...) in sequence.

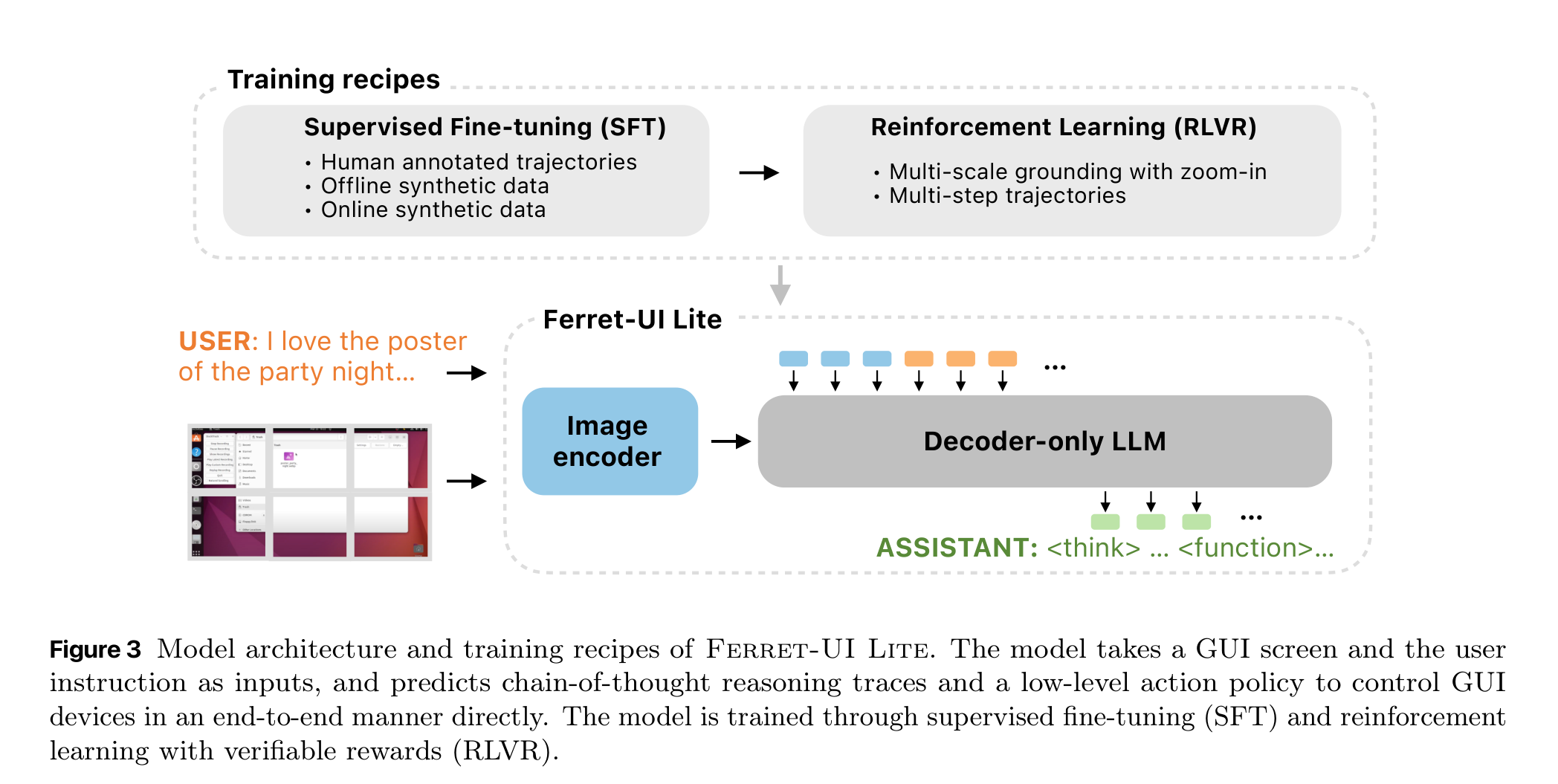

Figure 3. Model architecture and training recipes. The user instruction and screenshot pass through the image encoder into a decoder-only LLM, which generates think traces and function calls (actions). Training proceeds in two stages: SFT → RLVR.

Unified Action Space

To train one model on heterogeneous public datasets, the action representation has to be unified first. Ferret-UI Lite unifies it along two axes.

Grounding coordinates: some datasets give bounding boxes, others single points. Every box is mapped to its geometric center, normalizing everything to a point-based representation.

\[(x_{\text{center}}, y_{\text{center}}) = \left( \frac{x_{\min}+x_{\max}}{2},\; \frac{y_{\min}+y_{\max}}{2} \right)\]

where $(x_{\min}, y_{\min})$ and $(x_{\max}, y_{\max})$ are the box corners. Point annotations are left unchanged.

Action format: following the taxonomy of UI-TARS (Qin et al., 2025), actions are standardized into a function-call format. The text calls this “eleven representative actions,” though Table 5 actually enumerates fifteen once platform-specific variants are counted. On top of cross-platform actions (tap, swipe, textentry, terminate, etc.) sit desktop/web-only ones (right_click, double_click, press_hotkey) and mobile-only ones (long_press, navigate_home, open_app, navigate_back). The function-call form yields structured outputs that are easy to parse and align naturally with the coding and tool-use abilities of modern LLMs.

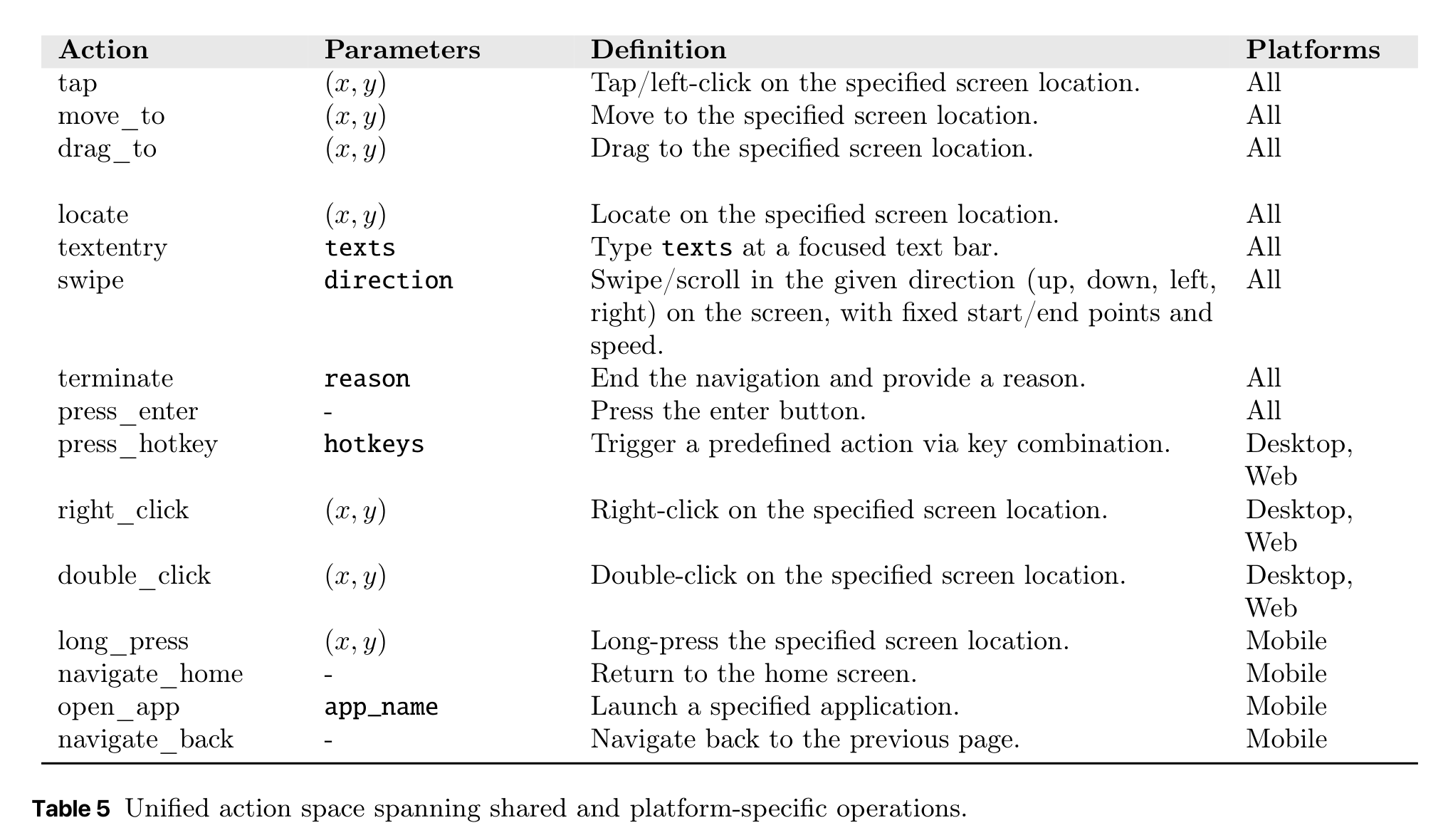

Table 5. The unified action space. Cross-platform actions plus desktop/web- and mobile-specific actions, all defined as function calls.

SFT Data: Real + Synthetic

SFT data is gathered along two axes. The public datasets span both grounding and navigation: GroundUI, OS-Atlas, UGround, Aria-UI, Aguvis, WaveUI, ShowUI, Jedi, AgentNet. On top of those, the authors generate synthetic data for mobile and OS platforms, for both grounding and navigation. Because smaller models need many training tokens (Kaplan et al., 2020), scale, coverage, and diversity matter especially here.

Synthetic Data Generation

The synthetic data comes in four kinds.

High-resolution grounding data: multiple GUI screenshots are concatenated into larger composite images (e.g., from OS-Atlas). This exposes the model to denser layouts and richer spatial context, teaching precise localization in realistic multi-element screens.
CoT navigation data: three reasoning traces are produced — (i) plan (a concise description of the next action), (ii) action think (reasoning over GUI elements, history, and candidate actions), and (iii) reflect (self-assessment relative to the goal). Each component is generated by GPT-4o via set-of-marks (SoM) visual prompting, conditioned on the human-annotated action for the current screen and the episode history. Two agents with different compute profiles result: short-CoT adds only a plan trace before the action, and long-CoT extends to action-think and reflection.
Synthetic QA data: to support assistive queries (“what’s left in my cart?”), episode goals are rewritten into natural-language questions with answers grounded in the final screen. The authors also inject error-prone frames into clean trajectories (e.g., replacing a correct terminate with an erroneous swipe) to simulate a stuck state, then generate the correction sequence — teaching replanning.
Online navigation data: a multi-agent system (Figure 4) interacts with real GUI platforms to produce rollouts at scale, with four components — a curriculum task generator of increasing difficulty, a planning agent that decomposes goals into step-level instructions, a grounding agent that executes actions, and a critic model that scores trajectories with textual rewards. These online trajectories carry the action errors, environmental stochasticity, and replanning strategies absent from human-annotated data; they are enriched with CoT traces and filtered by a VLM-as-a-judge.

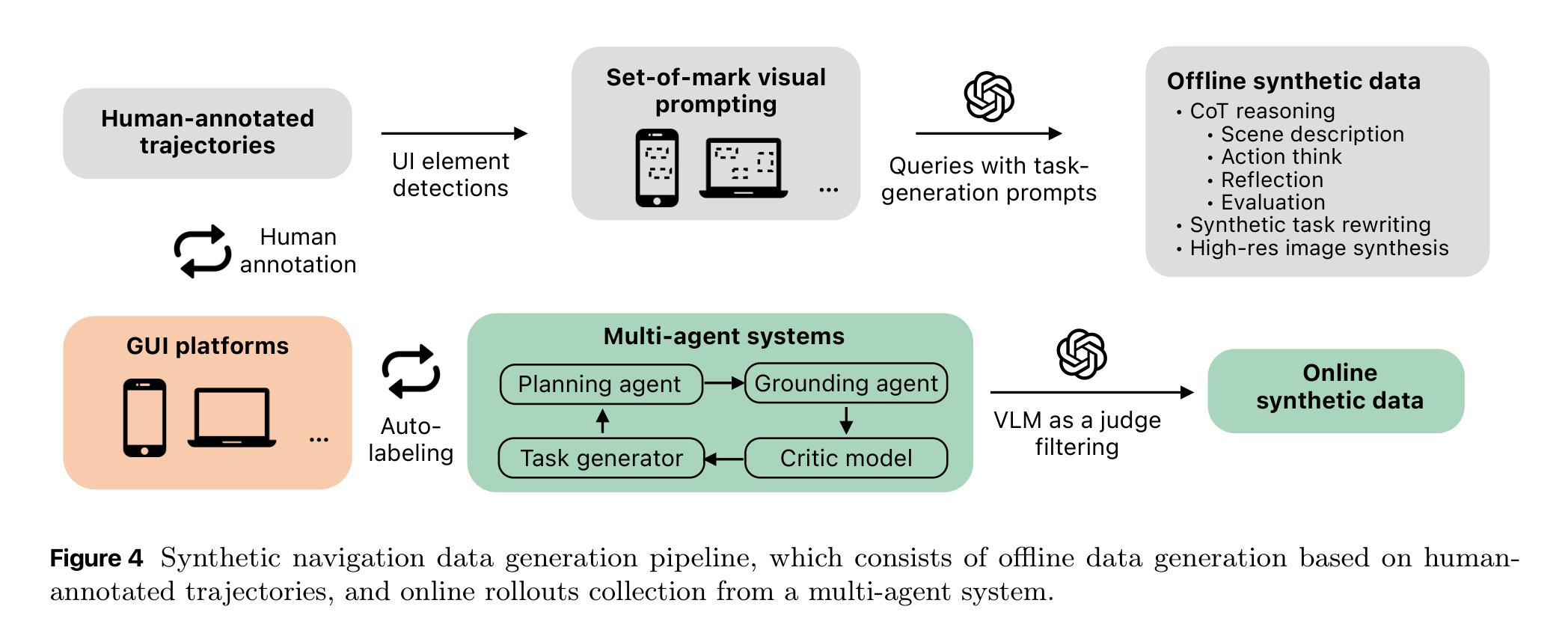

Figure 4. Synthetic navigation data pipeline. The top path builds offline synthetic data (CoT, QA, high-res) from human-annotated trajectories via SoM prompting; the bottom path collects online rollouts from a multi-agent system (planning, grounding, critic, task generator) filtered by a VLM judge.

Reinforcement Learning: Zoom-in Visual Tool-Use

SFT forces strict imitation of annotated outputs and so under-uses the flexibility of GUI tasks: the same goal can be reached by differently-shaped actions, yet SFT only learns surface-level label matching. RLVR addresses this by rewarding task success itself.

Grounding RL runs on OS-Atlas. Unlike SFT, which forces the model to reproduce the annotated center, RL grants positive reward whenever the predicted location falls inside the ground-truth box — a containment reward that better matches what grounding actually wants (“anywhere inside the box is correct”).

On top of this comes the zoom-in mechanism. After an initial prediction, the image is cropped around that location and the model re-predicts on the crop. It mimics how a person zooms in to read fine print, and helps especially on complex, high-resolution UIs: it lets a small model make its final decision over a narrow region rather than mobilizing subtle understanding across the whole screen. Both the initial and refined predictions are kept in the training pool, providing multi-scale grounding supervision.

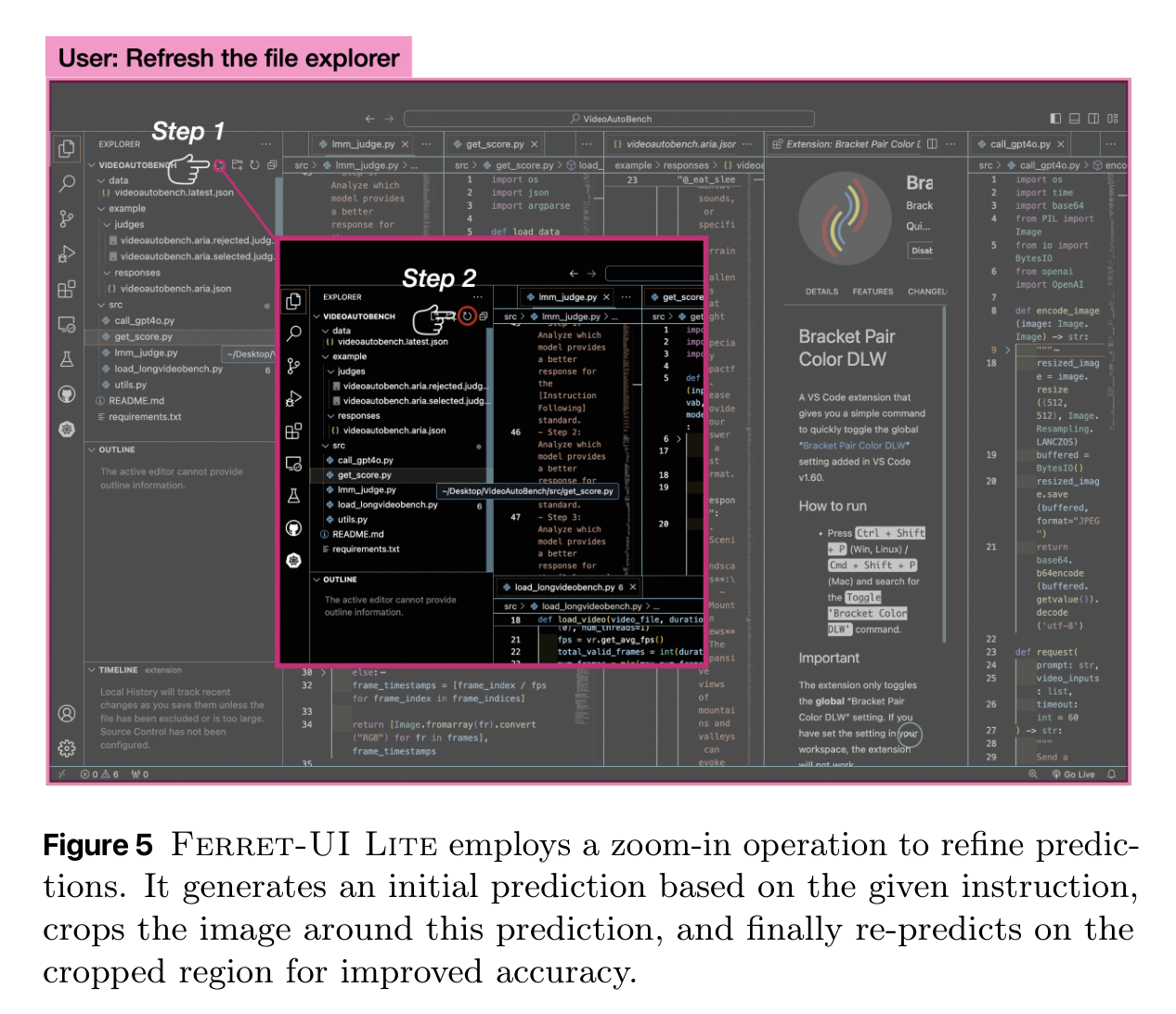

Figure 5. The zoom-in operation. For 'Refresh the file explorer,' Step 1 predicts an initial location, and Step 2 re-predicts on a crop around it for higher precision.

Navigation RL uses the mobile/desktop synthetic data plus AgentNet. Given the current screenshot, the high-level instruction, and the history of past actions, the model samples $M$ candidate outputs $z = [z_1, \ldots, z_M]$. Each $z_i = [c_i; a_i]$ is a chain-of-thought text $c_i$ followed by a predicted action $a_i = [\tau_i; \theta_i]$, with action type $\tau_i$ and parameters $\theta_i$ (e.g., a tap location). The reward compares the generated action against the ground truth $a^{\text{gt}} = [\tau^{\text{gt}}; \theta^{\text{gt}}]$.

Training Objective / Loss

The navigation reward is a sum of two components — one checks whether the action type is right, the other whether the parameters are precise.

\[r_i = f_{\text{type}}(\tau_i, \tau^{\text{gt}}, \theta^{\text{gt}}) + f_{\text{param}}(\theta_i, \theta^{\text{gt}})\]

The action-type reward $f_{\text{type}}$ checks type match but rewards parameter-free actions (e.g., navigate_home, where $\theta^{\text{gt}} = \emptyset$) more strongly; actions that require parameters get partial credit for matching the type.

\[f_{\text{type}}(\tau_i, \tau^{\text{gt}}, \theta^{\text{gt}}) = \begin{cases} 2, & \text{if } \tau_i = \tau^{\text{gt}} \text{ and } \theta^{\text{gt}} = \emptyset, \\ 1, & \text{if } \tau_i = \tau^{\text{gt}} \text{ and } \theta^{\text{gt}} \neq \emptyset, \\ 0, & \text{otherwise.} \end{cases}\]

The parameter reward $f_{\text{param}}$ evaluates parameter fidelity. For string parameters (text entry, direction) it uses exact match — 1 if matched, 0 otherwise. For location-based actions like tap, the authors experiment with two rewards: a sparse reward (1 if the predicted coordinate is inside the box, 0 otherwise — same as the grounding reward) and a dense reward that gives a graded score by normalized distance to the ground-truth center.

\[f_{\text{param}}^{\text{dense}}(\theta_i, \theta^{\text{gt}}) = \max\!\left( 1 - \lambda \left( \frac{|x_i - x^{\text{gt}}|}{w} + \frac{|y_i - y^{\text{gt}}|}{h} \right),\; 0 \right)\]

Here $(x_i, y_i)$ and $(x^{\text{gt}}, y^{\text{gt}})$ are the predicted and ground-truth centers, $w$ and $h$ the ground-truth element’s width and height, and the decay factor $\lambda$ — set to 0.5 — controls sensitivity. The closer to the target, the closer the reward to 1; a full box-width off drives it to 0.

Optimization (GRPO). Both grounding and navigation RL use GRPO. Per training example, multiple predictions are sampled — 8 from the original image + 4 from the zoom-in crop for grounding, and 32 candidates for navigation. Each sample receives a reward $r_i$, and the policy is updated with a group-normalized advantage.

\[\begin{aligned} A_i &= \frac{r_i - \text{mean}(r)}{\text{std}(r)}, \\ r &= [r_1, r_2, \ldots, r_M] \end{aligned}\]

For efficiency, online filtering discards prompts whose sampled rewards are all identical (uniformly 0 or 1), since they carry no learning signal — focusing on the most informative examples that sharpen the decision boundary.

Training Data and Pipeline

Item	Value
Backbone	Internal 3B dense multimodal LLM (pretrained on text + vision-language understanding data)
Image encoder	VitDet + AnyRes (dynamically partitions screenshots into a grid of cells)
SFT data	Public grounding/navigation datasets + mobile/desktop synthetic data (high-res grounding, short/long-CoT, QA, online multi-agent rollouts)
RL data	Grounding: OS-Atlas / Navigation: mobile+desktop synthetic + AgentNet
Training steps	SFT 10K steps, RL 1,500 steps
RL algorithm	GRPO + online filtering (grounding 8+4 samples, navigation 32 samples)
Rewards	Grounding: box containment / Navigation: action type ($f_{\text{type}}$) + parameters ($f_{\text{param}}$, sparse or dense, $\lambda=0.5$)

Experiments

The backbone is an internal 3B dense model, trained for 10K SFT steps + 1,500 RL steps. Grounding and navigation are evaluated in turn.

GUI Grounding

Evaluation uses ScreenSpot-V2, ScreenSpot-Pro, and OSWorld-G, spanning mobile/desktop/web and a range of resolutions. ScreenSpot-Pro is the hard one, featuring high-resolution desktop screens.

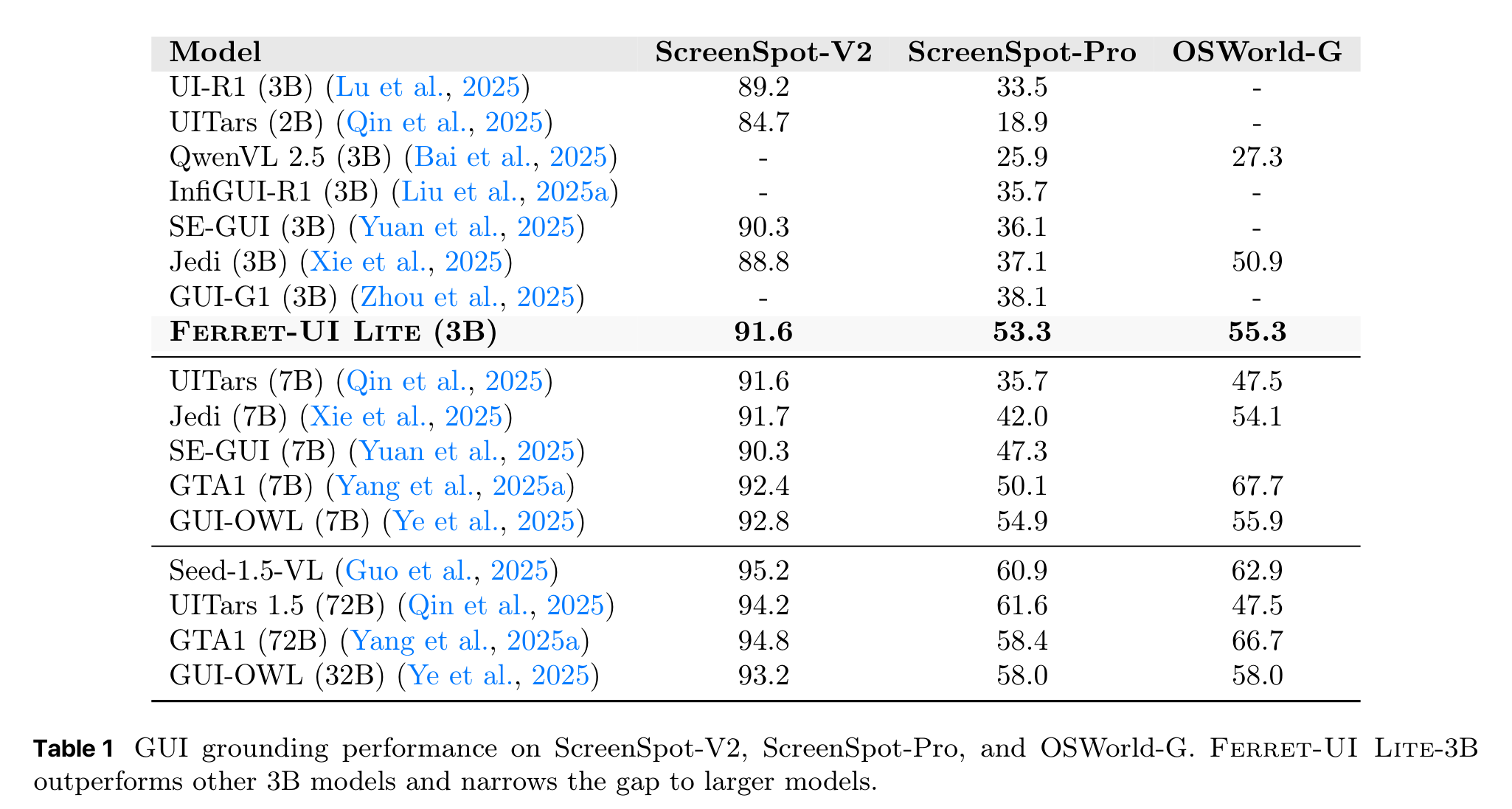

Table 1. Grounding performance. Ferret-UI Lite-3B reaches 91.6 on ScreenSpot-V2, 53.3 on ScreenSpot-Pro, and 55.3 on OSWorld-G — well ahead of the 3B group and shoulder-to-shoulder with the 7B tier.

ScreenSpot-V2 91.6: ahead of other 3B baselines (UI-R1-3B 89.2, Jedi-3B 88.8) and close to the 7B range of 90.3–92.8.
ScreenSpot-Pro 53.3: dramatically higher than other 3B models, which mostly sit in the mid-30s (Jedi-3B 37.1, GUI-G1-3B 38.1), and just below GUI-Owl-7B (54.9).
OSWorld-G 55.3: best among 3B (Jedi-3B 50.9), competitive with GUI-Owl-7B (55.9) and GUI-Owl-32B (58.0). The strongest 7B, GTA1-7B (67.7), still leads, but the gap is modest given the parameter scale.

One thing worth flagging: the abstract reports OSWorld-G as 61.2, while Table 1, Figure 6a, and Table 8 all consistently say 55.3. Since three tables agree, this review uses the verified 55.3 (the abstract’s 61.2 appears to be a typo). It’s a 6-point discrepancy, not a rounding issue — easy to propagate if you cite from the abstract alone.

Offline (Android Control). Split into low-level (single-step instruction) and high-level (global goal) tasks. Ferret-UI Lite-3B scores 86.6% low-level and 68.9% high-level, beating similar-size models (OS-Atlas-4B 80.6/67.5, InternVL-2-4B 80.1/66.7) and even some 7B/72B models (Qwen2-VL-7B 82.6/69.7, Aguvis-72B 84.4/66.4).

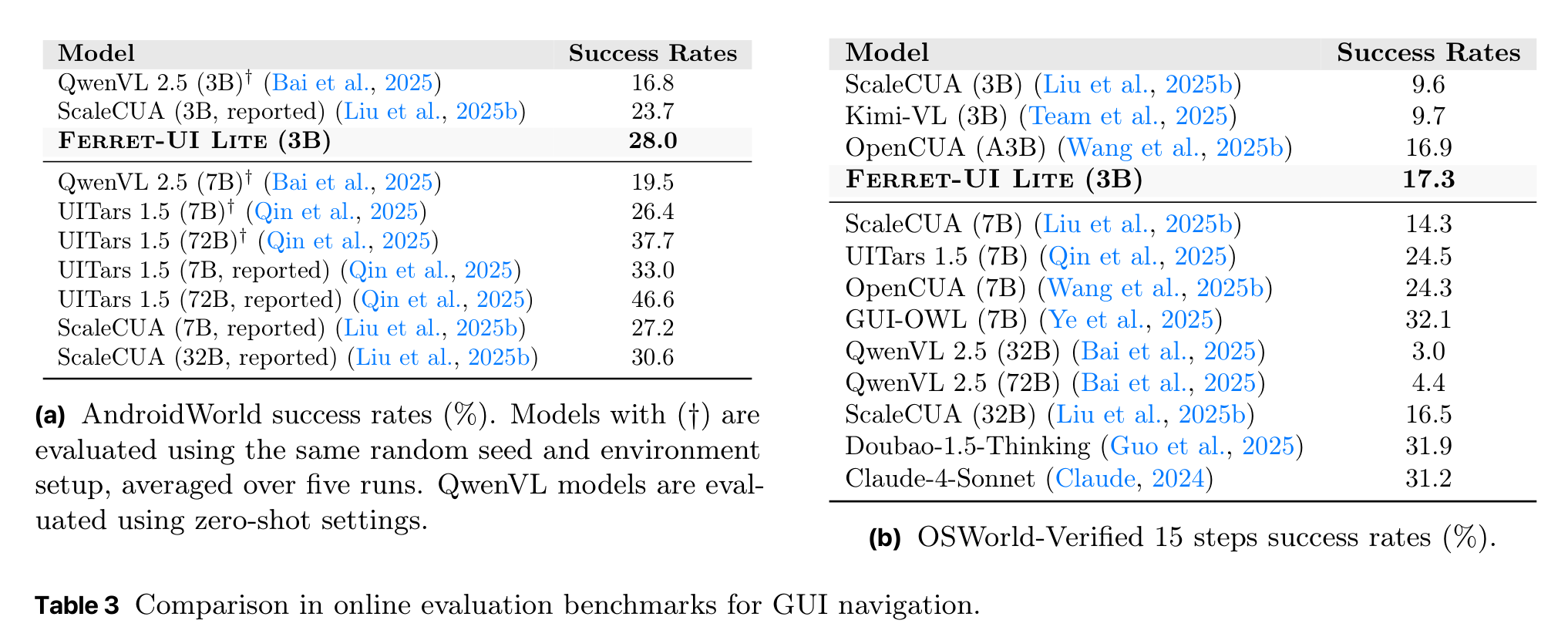

Table 3. Online navigation. (a) AndroidWorld: best among 3B models (28.0%), competitive with the 7B tier. (b) OSWorld-Verified (15-step): ahead of all 3B models (17.3%) but behind larger and commercial models.

AndroidWorld 28.0%: averaged over five runs in a dynamic environment of 116 tasks across 20 apps. Best among 3B (ScaleCUA-3B 23.7) and competitive with the 7B tier such as UI-TARS-1.5-7B.
OSWorld-Verified 17.3% (max 15 steps): ahead of all 3B models (ScaleCUA-3B 9.6, OpenCUA-A3B 16.9) and competitive with 7B. Raising the step cap to 50 lifts it to 19.8%, showing some test-time scaling headroom.

The paper is candid about the ceiling, though: navigation is constrained by model scale and falls short of the OSWorld leaderboard SOTA (e.g., 43.9% for Claude-4-Sonnet). For reference, in the same 15-step internal evaluation, Claude-4-Sonnet scores 31.2% and Doubao-1.5-Thinking 31.9%.

Analysis / Ablations

The real value here is in the ablations, not the headline numbers.

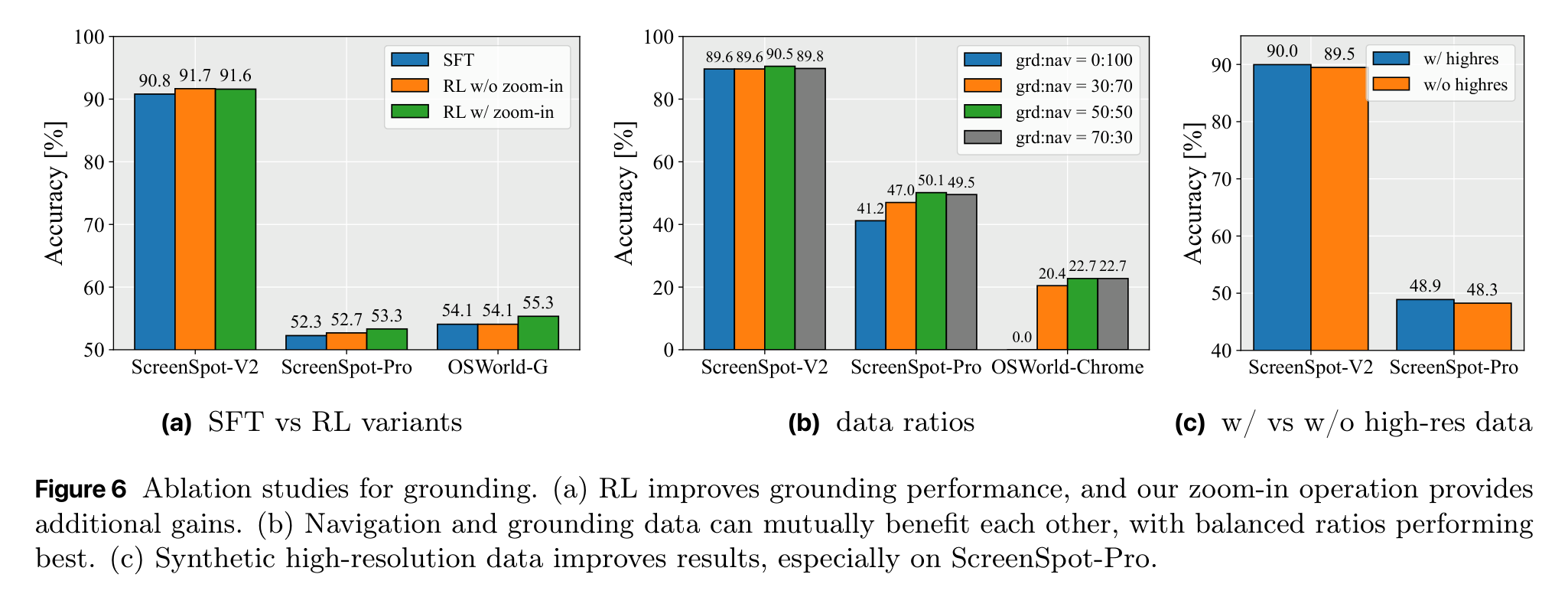

Figure 6. Grounding ablations. (a) RL consistently improves over SFT, and zoom-in adds a further gain. (b) A balanced 50:50 grounding:navigation mix is best. (c) Synthetic high-resolution data helps, especially on ScreenSpot-Pro.

RL and zoom-in (Figure 6a): RL consistently beats SFT-only. ScreenSpot-Pro goes 52.3 → 52.7 (RL, no zoom-in) → 53.3 (RL + zoom-in); OSWorld-G 54.1 → 54.1 → 55.3. The zoom-in adds the final increment, indicating the model learns not only from RL but also to actively use zoom-in for small or cluttered elements.
Data-mixture ratio (Figure 6b): varying grounding:navigation across 0:100, 30:70, 50:50, 70:30 shows the two data types complement each other. Even with zero grounding data (0:100), ScreenSpot-Pro still reaches 41.2 — navigation data carries grounding signal — while adding grounding data doesn’t hurt navigation. Tellingly, OSWorld-Chrome collapses to 0.0 at 0:100 but recovers to 22.7 at 50:50, showing that even navigation presupposes grounding ability. The balanced 50:50 mix is best overall (ScreenSpot-Pro 50.1, above the grounding-heavy 70:30’s 49.5).
Synthetic high-resolution data (Figure 6c): adding it nudges ScreenSpot-V2 (89.5 → 90.0) and helps more clearly on the hard ScreenSpot-Pro (48.3 → 48.9) — high-resolution data is particularly useful for precise localization.

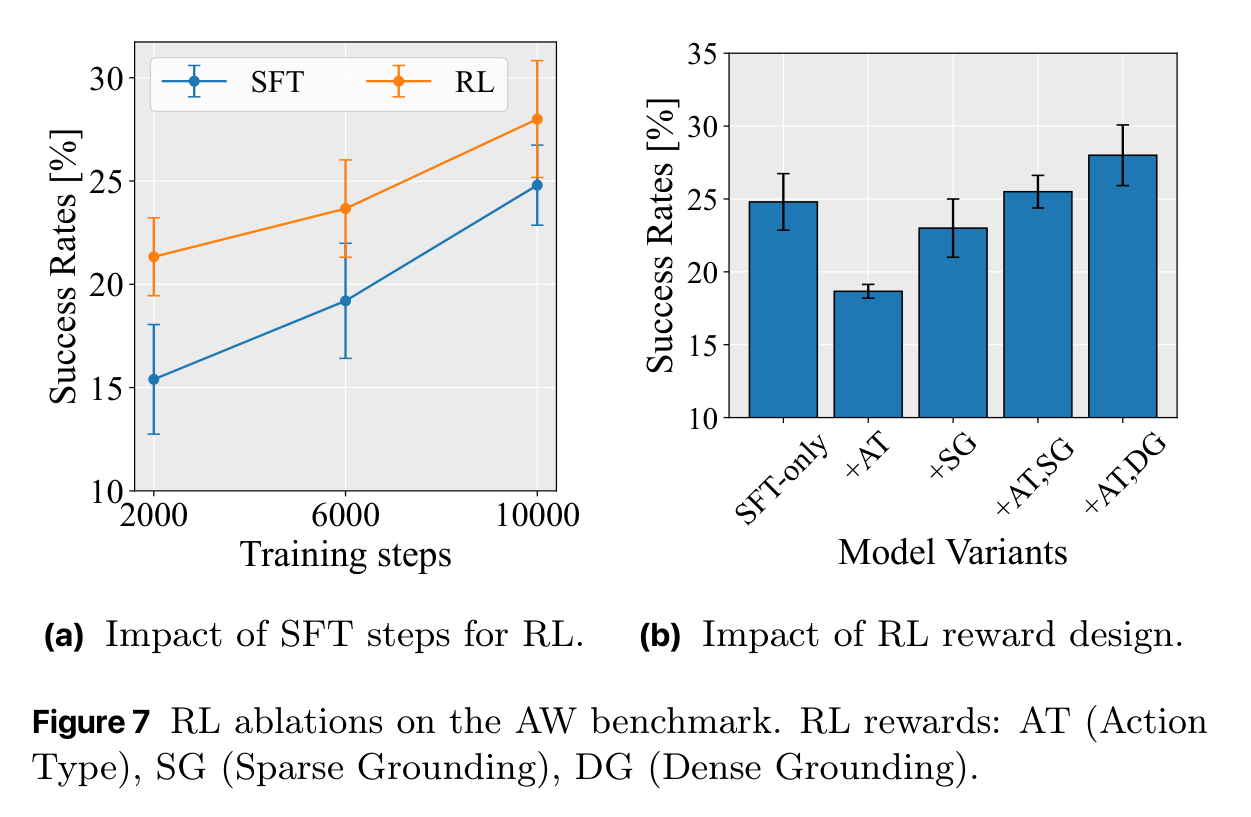

Figure 7. AndroidWorld RL ablations. (a) The fewer the SFT steps, the larger RL's relative gain. (b) Action type (AT) alone is insufficient; AT + dense grounding (DG) is best.

The navigation-side ablations carry the core lessons of training small models.

CoT and synthetic data (Table 4): on AndroidWorld, baseline 13.7 → short-CoT 15.8 → long-CoT 19.6 — longer reasoning traces lift multi-step performance. Scaling synthetic data on top of long-CoT from 5K → 13K → 17K pushes it further, 20.3 → 22.4 → 25.2 (about +6 points), evidence that scaling diverse synthetic data works.

Model Variants	AndroidWorld success (%)
Baseline (no CoT / synthetic data)	13.7
+ Short CoT	15.8
+ Long CoT	19.6
+ Syn. data (5K)	20.3
+ Syn. data (13K)	22.4
+ Syn. data (17K)	25.2

RL shines most when SFT is scarce (Figure 7a): adding RLVR on top of 2K, 6K, and 10K SFT checkpoints improves all of them, but the gain is largest when SFT steps are fewer — RLVR compensates for limited SFT.
Reward design is everything (Figure 7b): comparing four configurations — action type only (AT), sparse grounding only (SG), AT + SG, and AT + dense grounding (DG). Using only the action-type reward drops below even SFT-only (correct positions are never reinforced). Grounding reward alone improves tapping but doesn’t beat the SFT baseline. Combining the two yields consistent gains, and dense grounding beats sparse grounding. It is a direct demonstration of how much careful RLVR reward structure matters for small GUI agents.

Additionally, a grounding-dataset ablation (Table 6) shows that removing OS-Atlas causes the largest drop on ScreenSpot-Pro (−6.80), confirming it is the most critical source for high-resolution desktop grounding.

Limitations and Critical Assessment

An inherent navigation ceiling. As the authors concede, multi-step navigation is tightly coupled to model scale. OSWorld 19.8% is good among 3B but far from commercial SOTA (40s). Packing enough long-horizon planning and self-reflection into a small model remains the fundamental hard problem here.
RL reward sensitivity = a reproducibility burden. The finding that “reward design decides performance” cuts both ways. It means sensitivity to hyperparameters — the dense reward’s $\lambda$, the sample counts (8+4 / 32), the online-filtering threshold — and with no code or weights released, external reproduction is hard.
The internal OSWorld-G inconsistency. The abstract (61.2) and the body tables (55.3) disagree by 6 points. In a paper that emphasizes verifiable, quantitative reporting, a mismatched headline number dents credibility.
No latency or memory numbers. Despite the “on-device” framing, no real-device inference latency, memory footprint, or battery impact is reported. Zoom-in effectively looks at one input twice, raising inference cost, yet that cost-accuracy trade-off is not quantified.
GPT-4o dependence in synthetic data. The CoT and QA data are generated via GPT-4o SoM prompting. This is distillation of a larger model’s reasoning into a smaller one, which caps quality at the teacher’s level and carries licensing and reproducibility constraints.

Takeaways

A small GUI agent is the sum of “data + inference-time tools + reward design.” There’s no single trick; the unified action space, synthetic data, zoom-in, and RLVR each add a few points to push a 3B model up to 7B-tier grounding.
Grounding and navigation help each other in one model. A 50:50 mix is best, and grounding ability is a prerequisite for navigation (0% grounding → 0% on OSWorld-Chrome). There’s little reason to train the two abilities separately.
RL rewards are all about “what you reinforce.” In a small model, rewarding action type alone actually regresses, and adding a dense grounding reward is what makes it climb steadily. There’s a clear regime where the shape of the reward matters more than model size.
Grounding is nearly solved; navigation is wide open. When a 3B hits 91.6 on ScreenSpot-V2, the marginal value of single-screen grounding shrinks. The next frontier is multi-step planning, error recovery, and long-horizon stability — and small models still have a long way to go there.
The value of a “lessons” paper. What endures isn’t one SOTA line but the ablations recording what worked and what didn’t. They become a ready starting point for anyone building on-device agents next.

References

Paper: Ferret-UI Lite: Lessons from Building Small On-Device GUI Agents (arXiv:2509.26539)
Code/weights: not released
Lineage: Ferret-UI (arXiv:2404.05719), Ferret-UI 2, and other Apple GUI-understanding work
